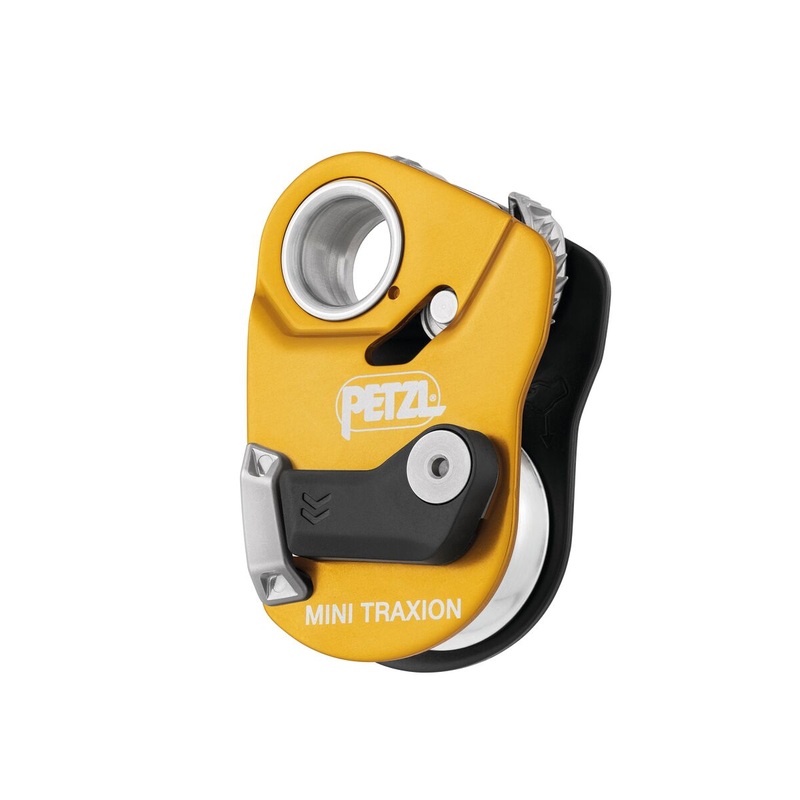

Petzl Mini Traxion Progress capture Pulley

Designed for hauling and rescue, MINI TRAXION is an openable progress-capture pulley that allows the rope to be installed while the pulley is connected to the anchor. The large-diameter sheave mounted on sealed ball bearings provides excellent efficiency (93 %). The cam can be locked in the open position so the device can be used as a simple pulley.

Description

• High-efficiency progress-capture pulley designed for hauling and rescue:
  – Large diameter aluminum sheave mounted on sealed ball bearings for excellent efficiency (93 %), even when hauling heavy loads
  – Toothed cam with self-cleaning slot optimizes performance under a variety of conditions, such as when the ropes are frozen or dirty
  – For use on 7 to 11 mm diameter ropes
• Simple to use:
  – Openable side plate allows the rope to be easily installed while the pulley is connected to the anchor, limiting the risk of dropping it
  – Triple-action opening of the moving side plate is quick and easy, even with gloves
  – May be used as a simple pulley by locking the cam in the raised position
  – Compact and lightweight (150 g)
• Durable:
  – Special side plate design protects the rope path
  – Stainless steel toothed cam for optimal durability

Specifications

• Weight: 150 g
• Certification(s): CE EN 567, UIAA
• Material(s): Aluminum, stainless steel, nylon
• Min. rope diameter: 7 mm
• Max. rope diameter: 11 mm
• Sheave type: Sealed ball bearings
• Sheave diameter: 32 mm
• Working load: 2 x 2.5 = 5 kN
• Breaking strength: 2 x 10 = 20 kN
• Working load as progress capture pulley: 2,5 kN
• Breaking strength as progress capture pulley: 4 kN
• Efficiency: 93 %
• Compatible with the RAD LINE 6 MM cord
• Compatible with the PURLINE 6 MM cord only for hauling a pack
